Photo Gallery

DOMTAR - SHERBROOK, QUEBEC

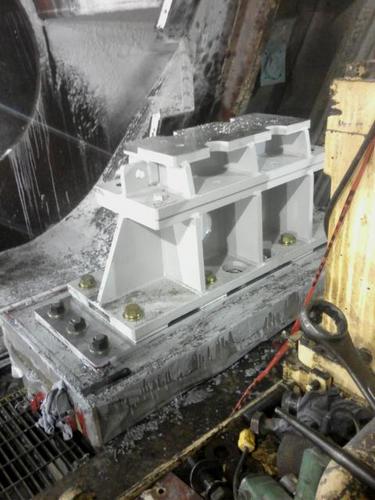

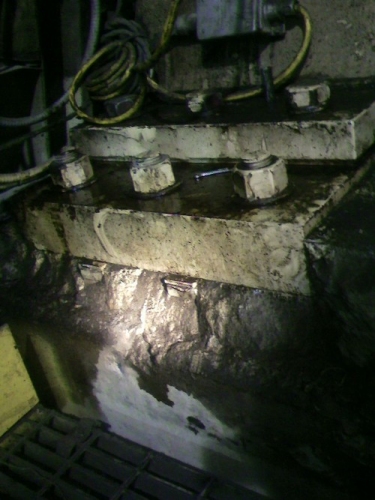

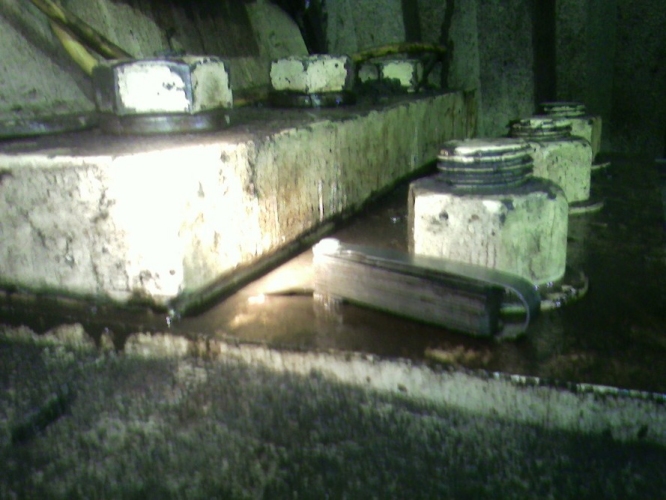

Initial visit to site found high axial vibration in fan rotor due to a soft foundation. The problem was overcome during a shutdown by removing the rotor and bearing pedestals then chipping away grout and base shims. The fan drive line was then completely rebuilt with new base shims and pedestals epoxy grouted in. New SKF bearings, laser aligned rotor to reduction gear box. Vibration analysis was then performed upon start up and a hot trim balance performed.

Domtar

IMPERIAL OIL REFINERY - SARNIA, ONTARIO

Rebuilt one Howden Buffalo - Gas Cracker Exhaust Fan.

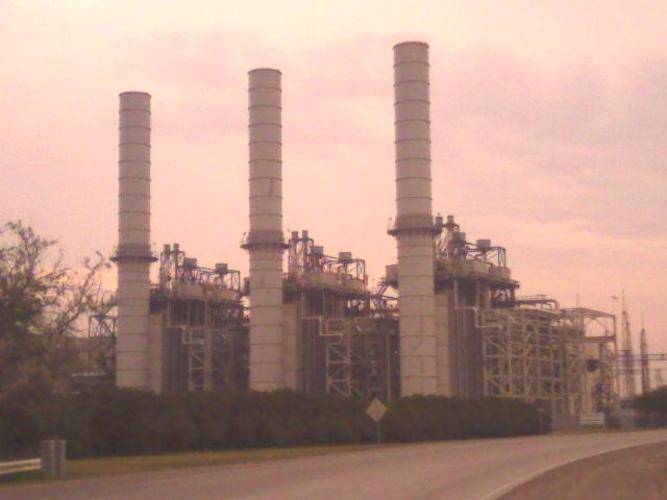

CO-GENERATION STATION - SARNIA, ONTARIO

Performed start up on cooling tower fans.



ABITIBI BOW WATER - FORT FRANCIS, ONTARIO

Installed new bearings and performed a laser alignment on drive line and tipped out fan blades to achieve better performance and then balanced afterwards. All work performed in situ on site.

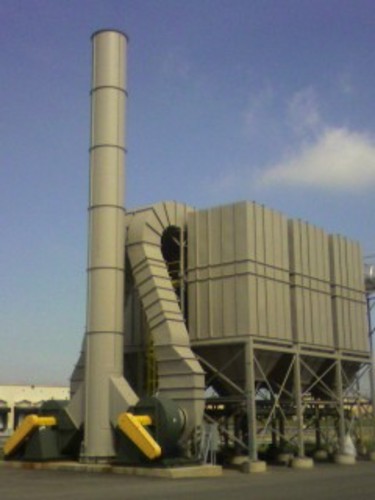

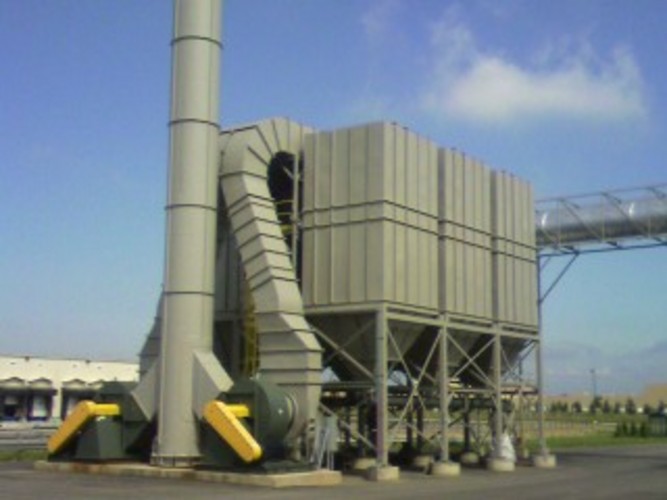

DUST COLLECTOR SYSTEM - ALLISTON, ONTARIO

Repaired multiple fractures in structure due to excessive vibration and then rebuilt two NYB-Exhaust Fans on site and balanced afterwards.

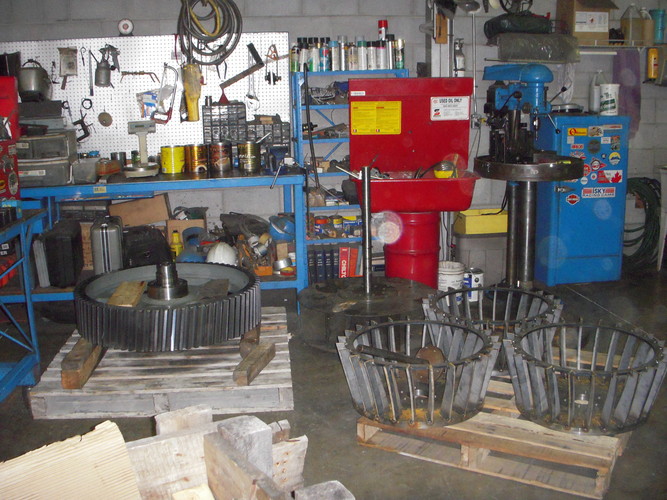

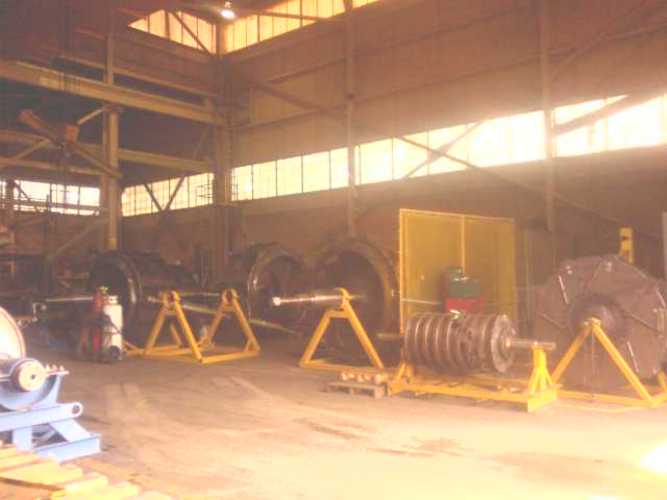

FANTACTICS SHOP - CAMBRIDGE, ONTARIO

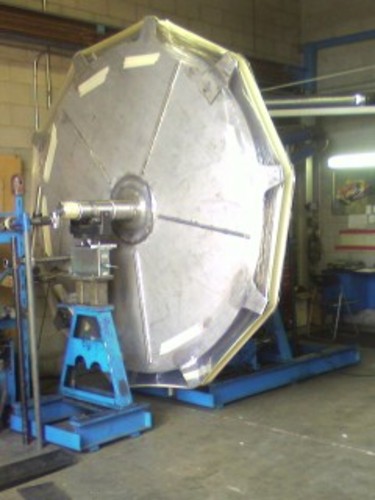

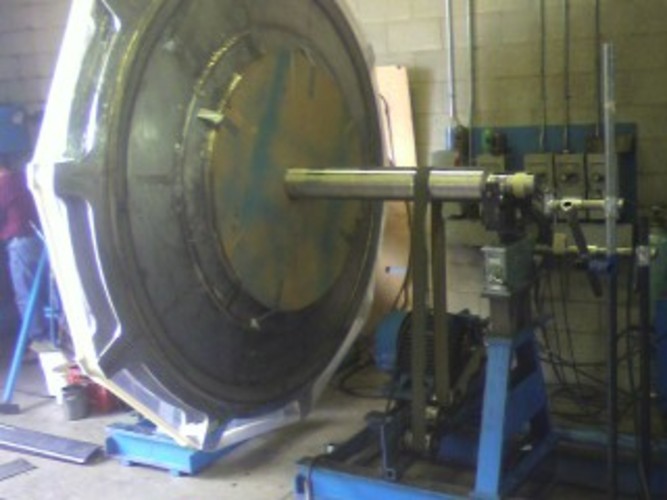

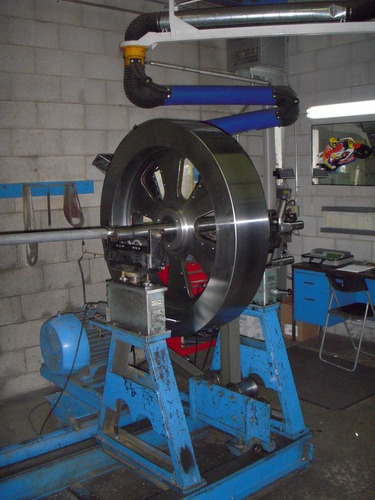

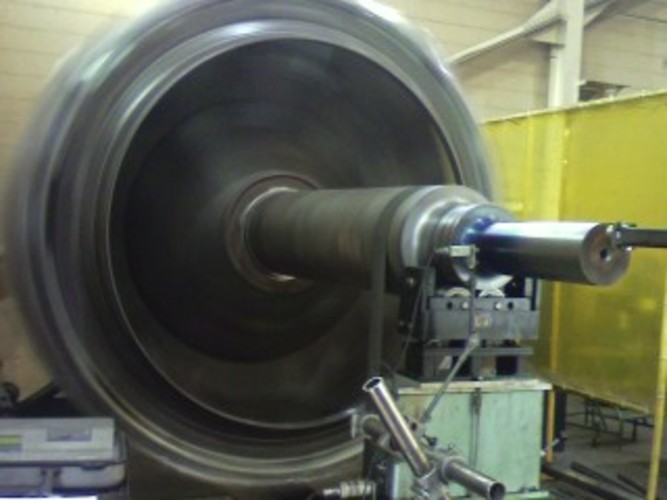

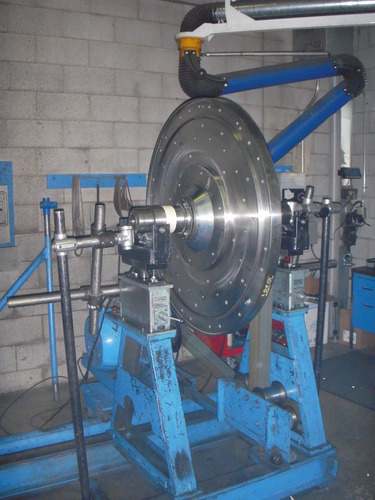

Dynamically balanced one large Pressure Blower Fan to an ISO Grade of G 2.5 on a 5000 lbs. IRD soft mount balancing machine.

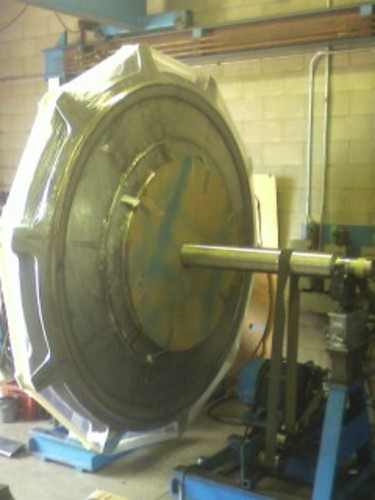

HALAR COATED FAN

Coated one Industrial Fan with Halar coating then balanced to an ISO Grade of G 1.0 for a Uranium enriching facility



HALAR COATED FAN

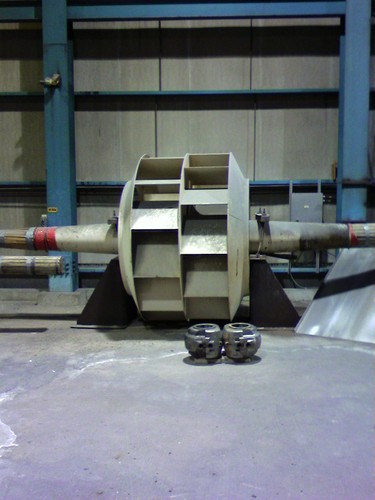

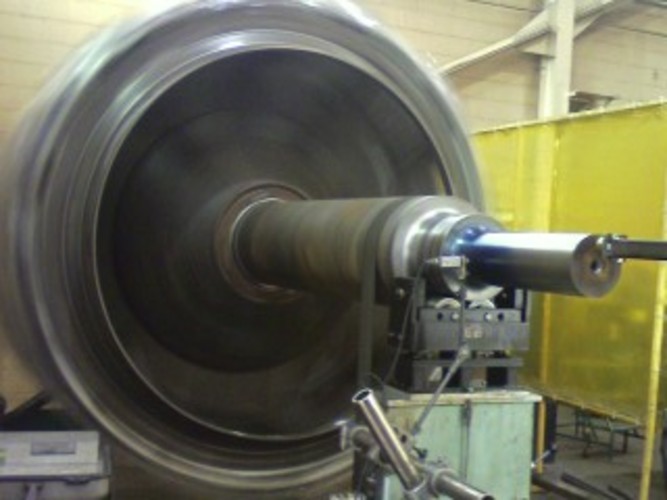

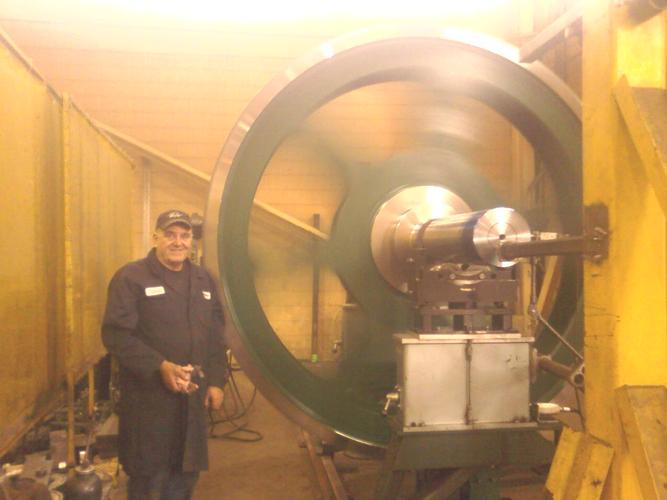

Dynamically balancing one large ID Fan (14,000 lbs.) on a 25,000 lbs. IRD Balancing Machine.



NYB - Exhaust Fan

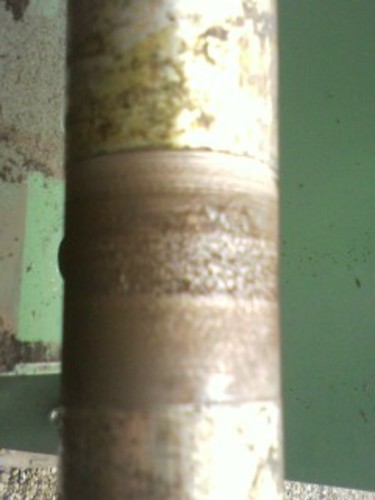

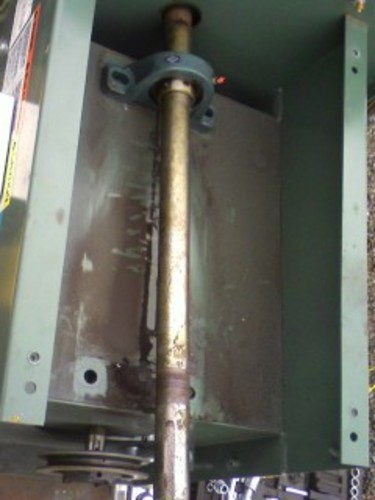

Analyzed fan condition and found neck down shaft. Made new shaft then removed and replaced bearings and then balanced on site.

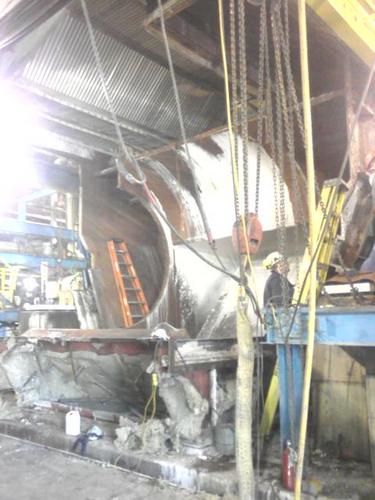

Pulp and Paper Mill - Quebec

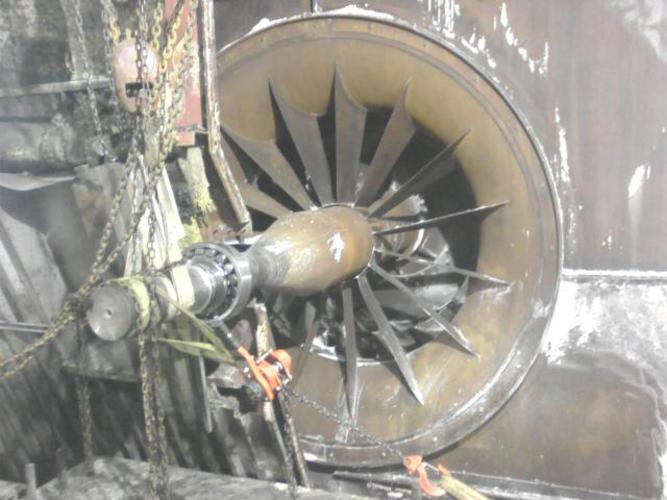

Replaced and balanced one spare rotor on site in ID Recovery Boiler.



Pulp and Paper Mill - Quebec

Rebuilt one FD Power Boiler Fan on site.

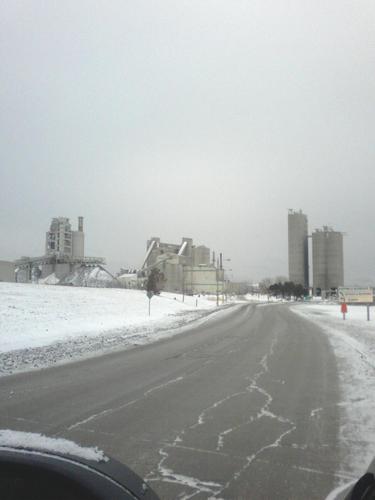

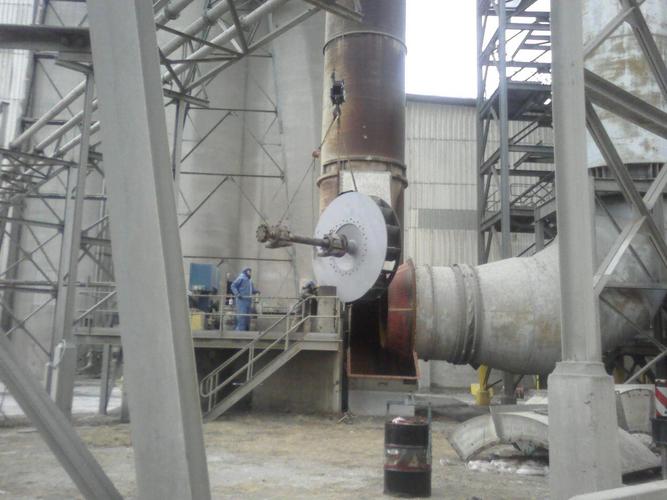

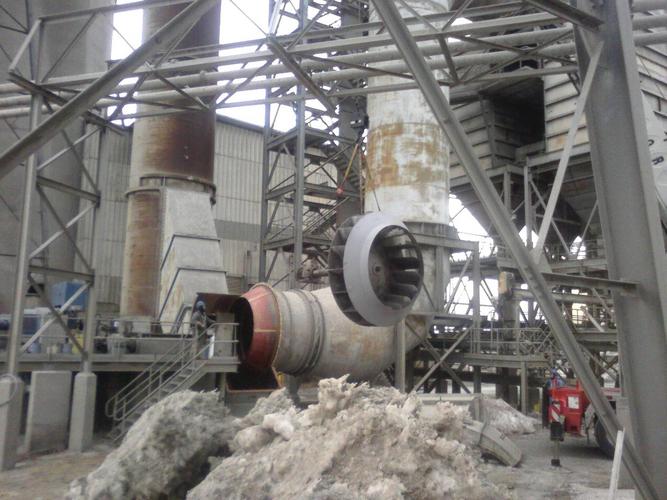

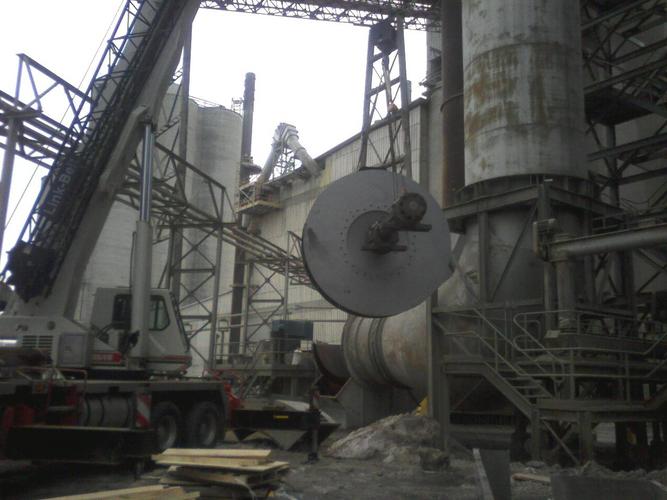

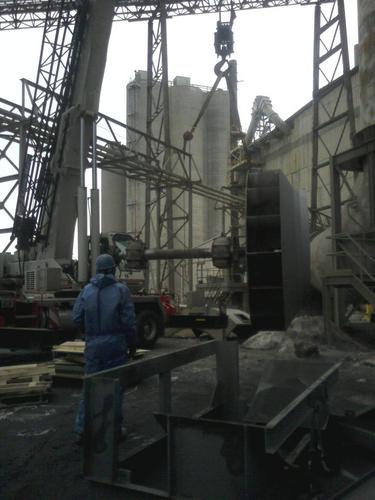

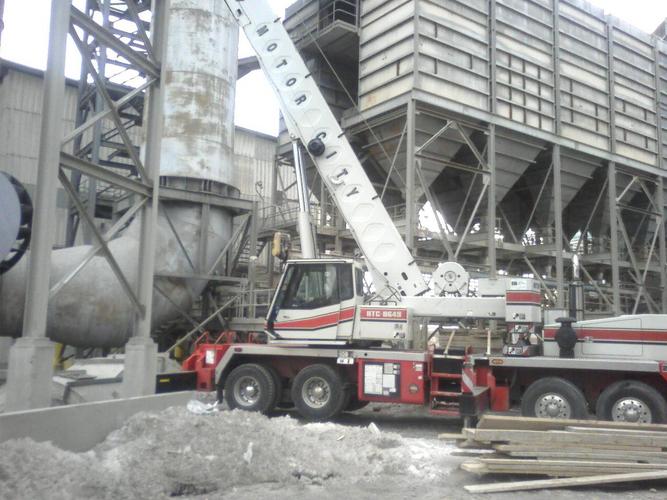

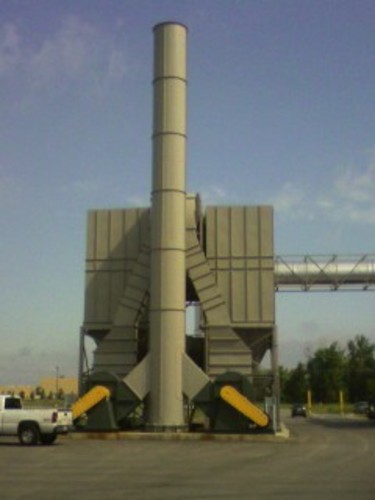

CEMENT PLANT (DUST COLLECTOR / BAG HOUSE FAN) - ONTARIO

Removed and replaced with new rebuilt spare rotor and new driveline components and performed start up and vibration analysis upon completion.

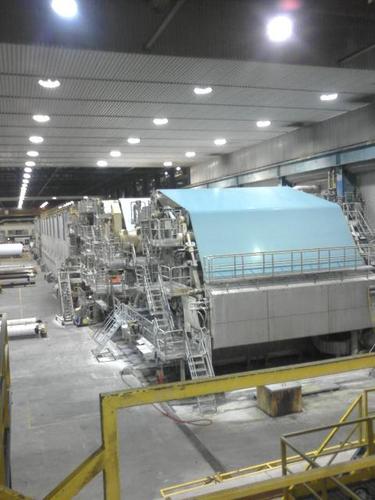

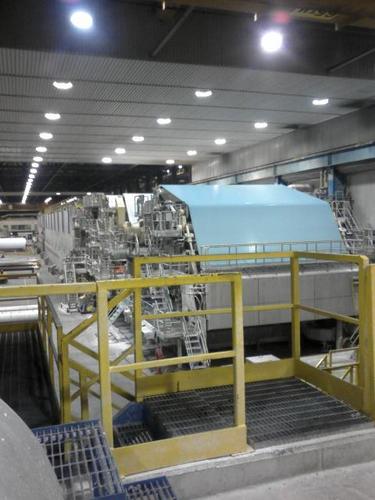

PAPER MILL MACHINE - NORTHERN ONTARIO

Analyzed vibration problem and changed bearings on Paper Machine.

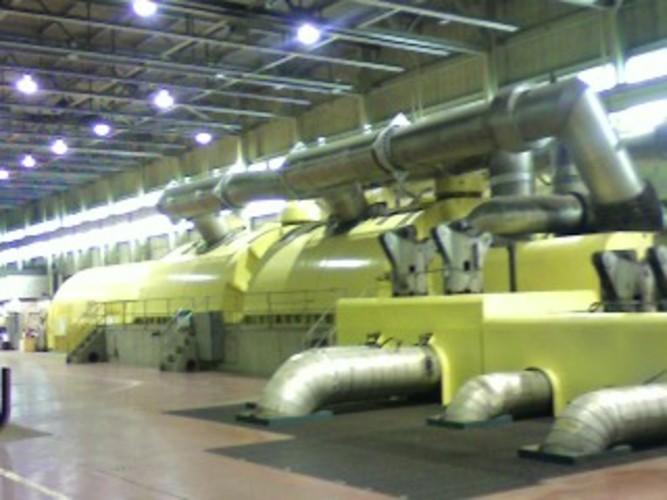

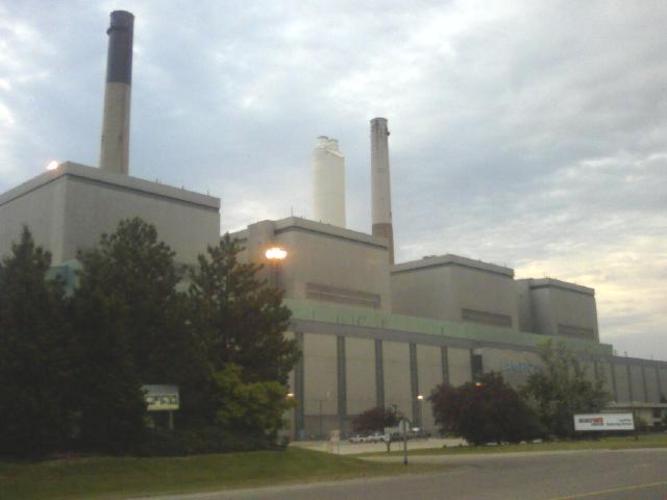

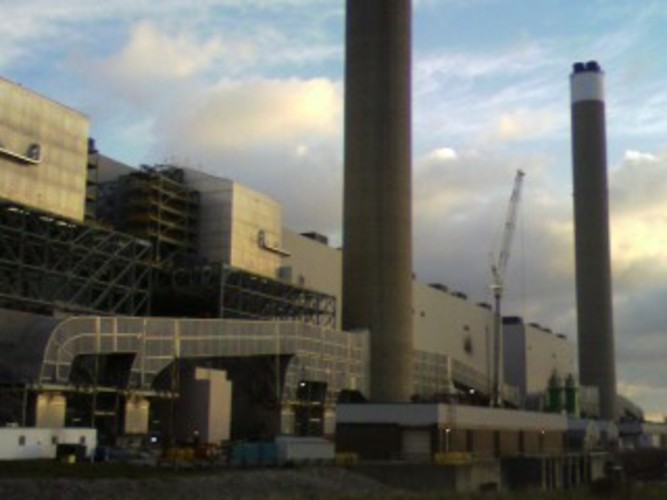

OPG - LAMBTON, ONTARIO

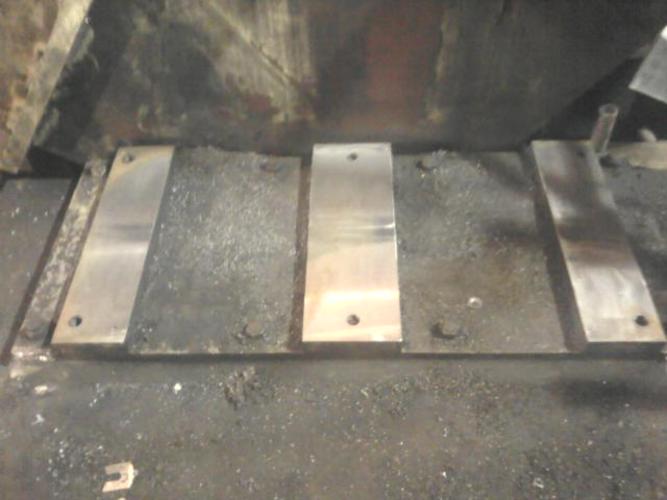

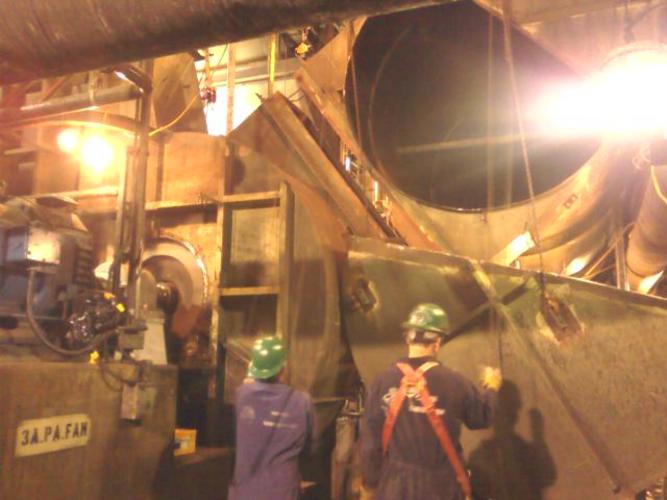

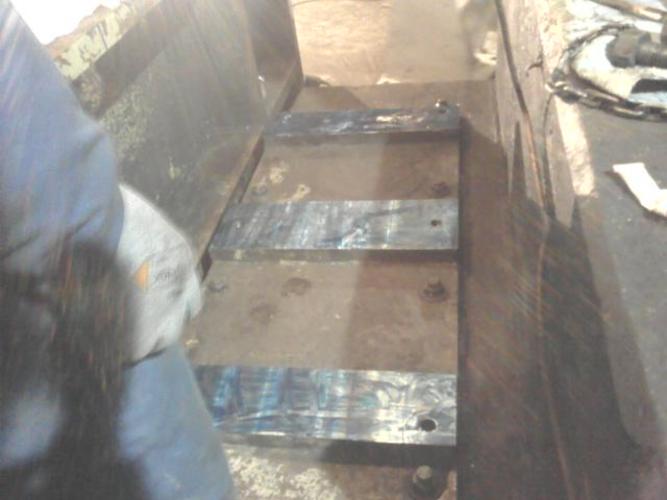

Rebuilt one PA fan due to improper installation years earlier with ongoing problems since initial install. Removed impeller and bearing pedestals, machined sole plates level/flat on site. Rebuilt fan back to manufacturer's specifications. Trim balanced on site and performed start up procedures.



JOB SITE PHOTOS - MISCELLANEOUS
